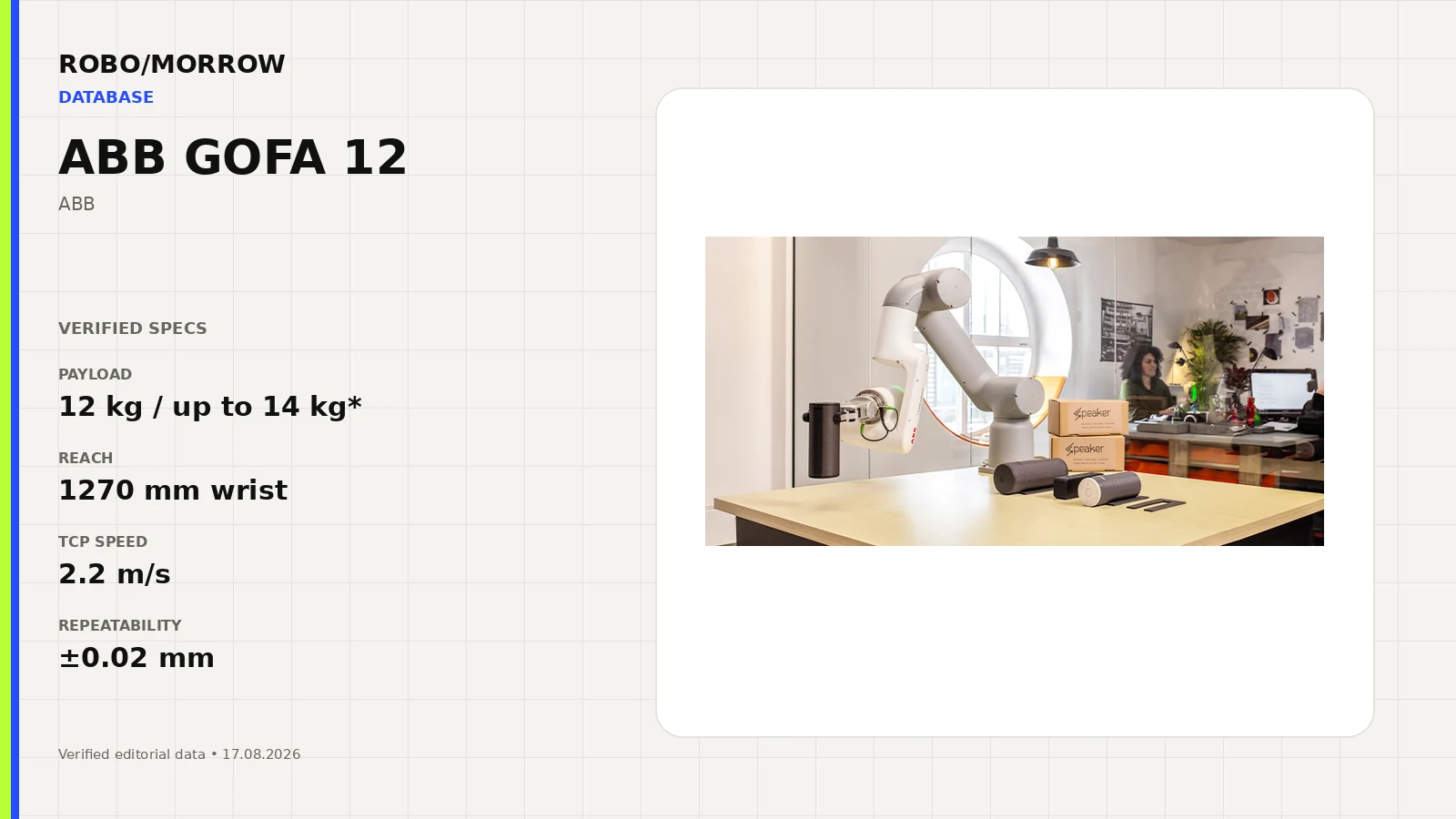

ABB GoFa 12

ABB GoFa 12 is an industrial cobot suited to precision processes, gluing, welding, machine tending and factories already using ABB. RoboMorrow treats it as one component of a complete automation application, not a standalone “autonomous robot”. The arm requires tooling, programming, a safe cell and process integration.

Key specifications

• GoFa 12 is the 12 kg-class variant; current ABB page states up to 14 kg in wrist-down configuration.
• 1270 mm wrist reach / about 1370 mm flange reach.
• Up to 2.2 m/s TCP speed for the GoFa family.
• Up to ±0.02 mm repeatability, IP67.
• RobotStudio, OmniCore and optional Ultra Accuracy.

Where it fits

The strongest fit is precision processes, gluing, welding, machine tending and factories already using ABB. The final decision should come from the complete cycle: tool and workpiece mass, centre of gravity, cell geometry, machine signals, required quality and error recovery.

Safety

Collaborative functions do not automatically make an application fence-free. Sharp parts, hot processes, heavy tooling or high speed may require scanners, curtains, reduced-speed zones or physical guarding. The finished cell needs a risk assessment.

Availability and cost

Quote via ABB/partner; public Polish/EU list price not confirmed. Compare the complete commissioned-cell cost: arm, gripper, pedestal, safety, integration, commissioning, training and service SLA.

Uncertainties

ABB publishes payload/reach values that depend on variant and measurement point. Match the exact configuration number in the quote to the technical data.
